Requirements

· USB memory stick

Information

· When you update a flash version which is older than 14021807 (2014.FEB.18) to a version which is newer than 14021807 you have to register the software.

· When the control box is not activated you will see the info „c4“ at the display and you cannot enter parameter menu.

How to register

1. Update control box:

a. It is recommended that the memory stick is empty/formatted!

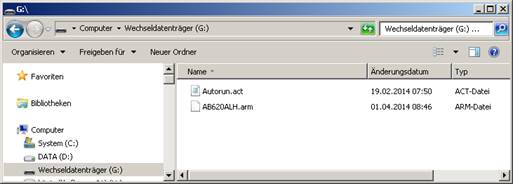

b. Copy the flash software direct on the stick (not in folder)

c. Copy/extract the actual UpdatePack for AB6xx on the stick (not in folder)

d. Control box -> power off

e. Plug memory stick

f. Control box -> power on

g. Wait until update is done

h. Remove memory stick

2. Read parameters from control box:

a. Clear/format memory stick!

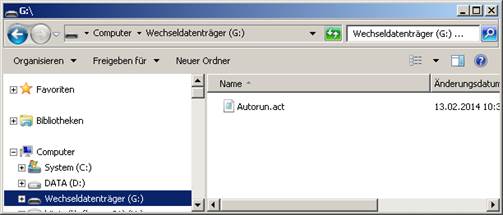

b. Copy/extract the autorun.act ([zip]) direct on the stick (not in folder)

c. Control box -> power off

d. Plug memory stick

e. Control box -> power on

f. Remove memory stick

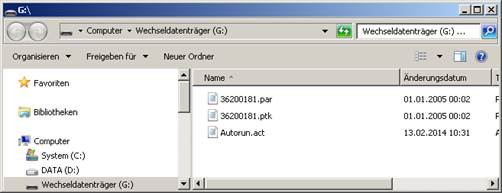

g. Send the “.par” file (parameter file which is now on your memory stick) to EFKA

3. Activate control box:

a. You will receive another autorun.act from us

b. Clear/format memory stick!

c. Copy/extract the autorun.act direct on the stick (not in folder)

d. Control box -> power off

e. Plug memory stick

f. Control box -> power on

g. Remove memory stick
