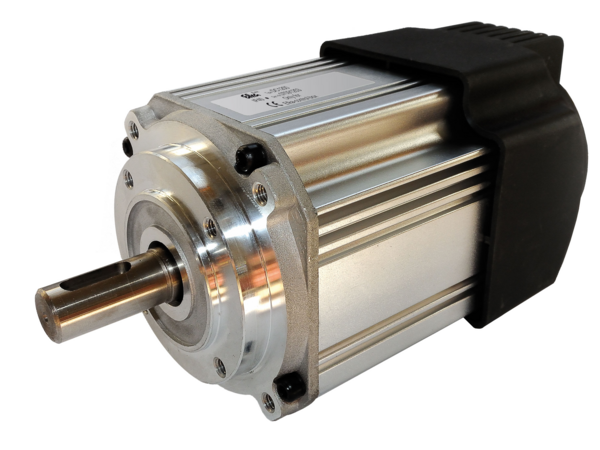

DC1250

Brushless direct current  motor in compact design  for flange mounting with integrated incremental encoder. Usable for medium heavy and for heavy sewing machines.

Usable control box:

AB620A, AB611A & AB600A


Technical specifications

Power range:750 W

Operation voltage:

230 VAC (180 V-250 V)
Maximum Speed:4500 min-1
Nominal torque:1,8 Nm
Maximal torque:8,2 Nm
Moment of inertia (Jrot):0,9 kgcm2
Length:142,5 mm
Flange dimensions:80 x 80 mm2
Weight:2,760kg
Insulation class:B
Protection class:IP40
Shaft end:cylindrical ∅14k6
Incremental encoder, integrated:

512 Impulses/rotation
