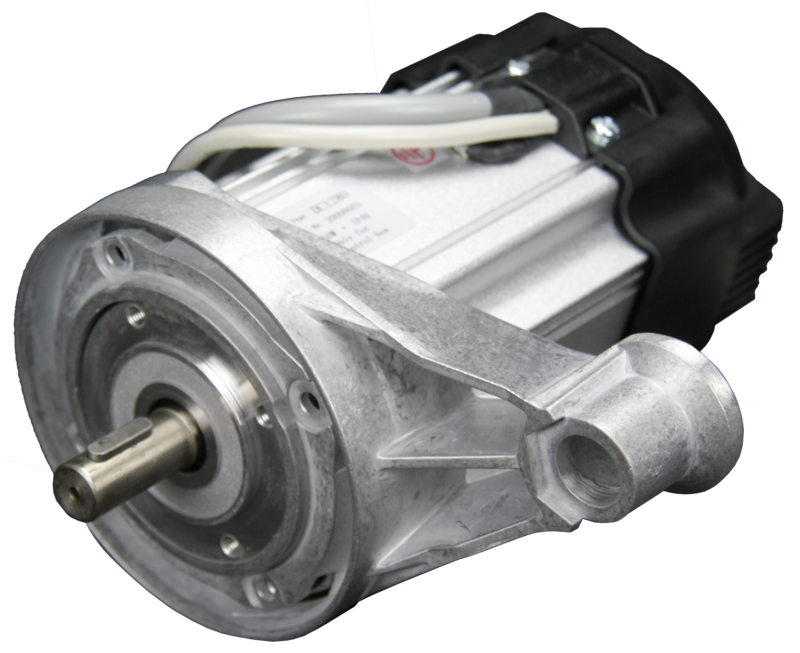

DC1280

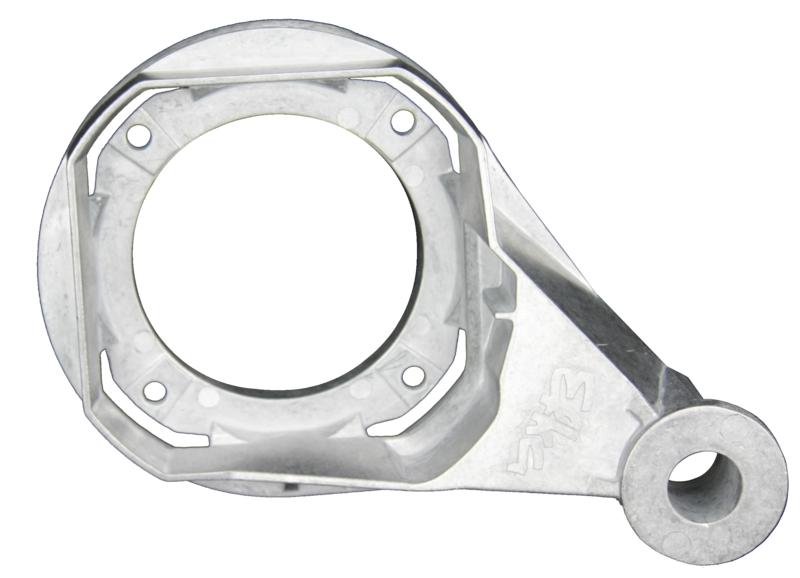

The most powerful brushless DC motor from Efka in a compact design for under table and Flange mounting with integrated magnetic encoders and fan.
Suitable for medium-heavy 2-needle machines and extremely heavy sewing machines.
Usable control box:
AB620A, AB611A & AB600A
Technical specifications
| Power range: | 750 W |
Operation voltage: | 230 VAC (180 V-250 V) |
| Maximum Speed: | 2250 min-1 |
| Nominal torque: | 4 Nm |
| Maximal torque: | 16 Nm |
| Moment of inertia (Jrot): | 2,2 kgcm2 |
| Length: | 170 mm |
| Flange dimensions: | 80 x 80 mm2 |
| Weight: | 3,6 kg |
| Insulation class: | B |
| Protection class: | IP40 |
| Shaft end: | cylindrical ∅14k6 |
| Incremental encoder, integrated: | 512 Impulses/rotation |
-
-
-
