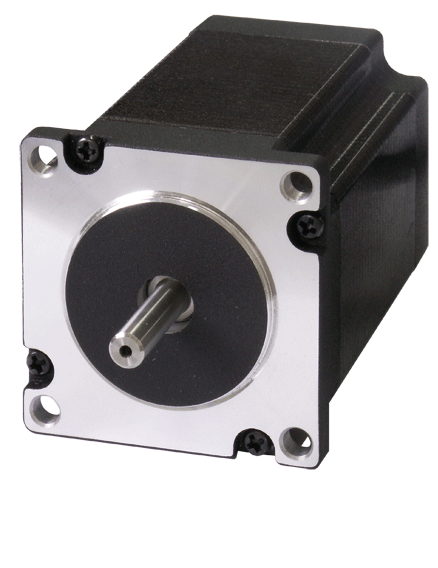

SM251S / SM251M 2-Phase Stepper Motor

Stepper motors are digitally controlled drives, and have gained great acceptance and spread since the technology change from analog to digital technique because of their cost-effectiveness combined with long product live as well as low control requirements.

The SM251M motor with Molex connectors are used with our compact AB425S control unit with 2 integrated stepping motor drivers. The SM251S motor with SubminD plugs are used with our budget-priced SM210A stepping motor control for accurate speed and positioning

Technical specifications

Current per winding:2,1 A

Resistance per winding:

2 Ω
Inductance per winding:8,8 mH
Holding torque:169,7 Ncm
Moment of inerta:430 gcm2
Step angle:1,8 °
Lenght:76 mm
Weigth:1,1 kg
Motor shaft: ∅6,35 –0,013
Flange dimensions∅38,1 ±0,025 (4 x M5 47,14²)
Controls:

AB425S
